Wear eye protection and gloves, then assemble a jack, stands, lug wrench, sockets, C‑clamps, wire brush, brake cleaner, and OEM‑style pads. Loosen lugs, lift and support the Tundra, remove wheels, unbolt and hang calipers, clean hardware and rotors, compress pistons, and install pads. Torque bolts and lugs to spec, pump the pedal, check fluid, then road test and bed the pads. Next, you’ll see each front and rear step broken down in order.

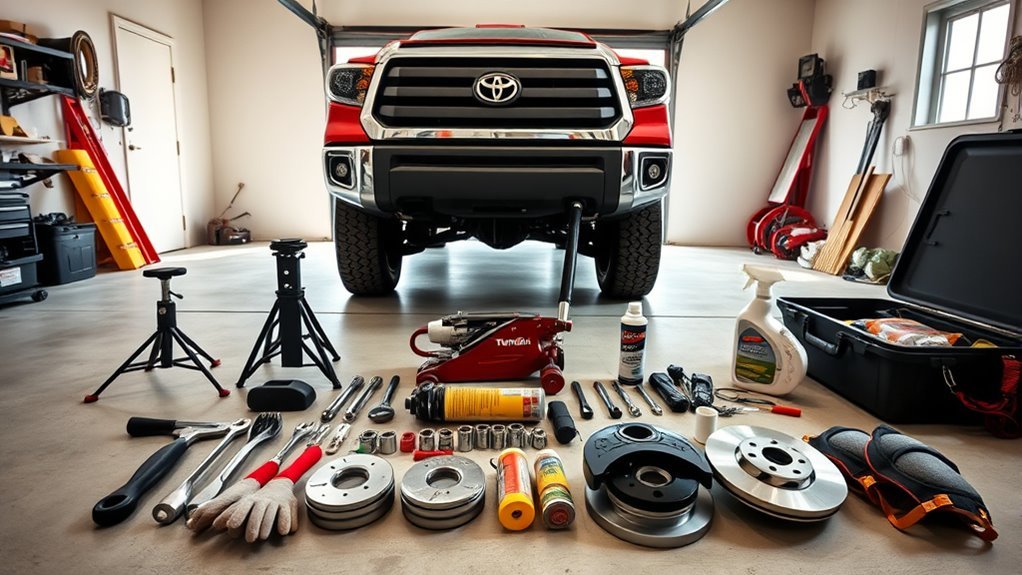

Safety Gear, Tools, and Parts You’ll Need
A safe, efficient brake job on your 2014 Toyota Tundra starts with the right protection and equipment.
Begin with safety precautions: wear safety goggles to shield your eyes from rust, dust, and cleaner spray, and gloves to protect your skin from chemicals and sharp edges.
Lay out your essential tools before you start. You’ll need a jack, jack stands, and a lug wrench, plus a socket set for caliper and bracket fasteners.
Have C clamps ready to compress the caliper pistons, and a wire brush to clean rust and debris from hardware contact points.
Use OEM Toyota brake pads for proper fit and performance. Additionally, ensure you select pads with low dust formulation to keep your wheels cleaner during operation.
Keep brake parts cleaner and a bungee cord on hand to clean components and support each caliper.
Lifting the Tundra and Removing the Wheels
Begin by loosening each front (or rear) wheel’s lug nuts one turn while the Tundra is still on the ground so the wheels don’t spin.
Set the parking brake, chock the opposite wheels, and verify the truck’s on level ground. Review safety precautions and confirm the jack and stands are rated for the Tundra’s weight.
Position a hydraulic jack at the proper front or rear lift point and raise the truck high enough to place jack stands under the frame.
Lower the truck carefully onto the stands and confirm it’s stable before working underneath. Never rely on the jack alone.
Remove the lug nuts fully and pull the wheels off to expose the brake components.
Keep brake fluid off painted surfaces and maintain tools organized.
Cleaning Wheel Wells and Prepping for Paint
Before you spray any paint, clean the wheel wells thoroughly so the coating adheres and lasts. For proper wheel well maintenance, start with safety glasses and a respirator.
Use a stiff wire brush to remove loose rust, caked mud, and flaking factory coating. Work methodically around the entire wheel arch and frame edges.
Next, use brake parts cleaner to flush away remaining dust, grease, and oil that can ruin paint adhesion. Let all surfaces dry completely.
Mask the brake rotor, caliper, suspension components, body panels, and tire sidewalls with tape and paper or plastic. Seal edges carefully to prevent overspray.
Once masked, visually inspect for remaining contamination or loose material and re-clean if needed so the surface is ready for coating.
Painting Calipers and Wheel Well Components
Once the wheel wells are prepped and masked, turn your attention to painting the calipers and any exposed suspension or wheel well components you want coated.
Put on gloves and safety glasses. Thoroughly clean caliper surfaces and nearby parts with brake parts cleaner to remove machining oil, dust, and debris; let everything dry completely.
Put on gloves and safety glasses, then clean all caliper surfaces with brake cleaner and allow them to dry completely
Mask rubber lines, bleeder screws, and any friction surfaces. Use cardboard or additional tape to shield the rotor and body panels from overspray.
Select a high-temperature caliper paint (e.g., Duplicolor) rated for braking heat. Shake the can well and use controlled paint techniques: light, even passes, starting and ending off the part.
Apply two medium coats, allowing proper flash time between coats. Let the calipers fully cure before handling or reassembly to prevent damage or flaking.

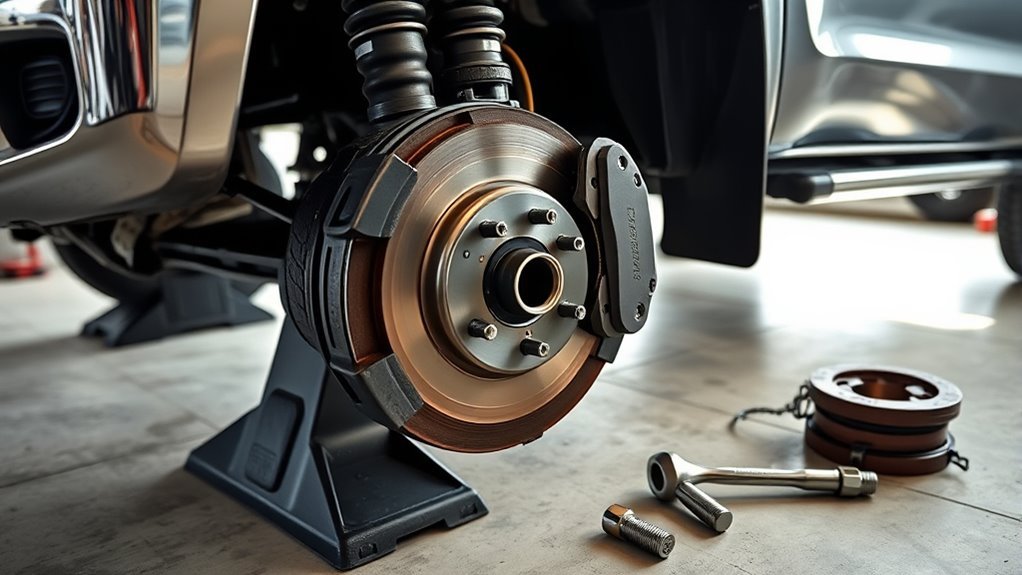

Removing Front Calipers and Rotors
Start by freeing the brake line at its clip on the control arm so you can safely access and move the front caliper.
Next, unbolt the caliper, support it with a bungee cord to avoid stressing the brake hose, and then remove the rotor, using a bolt to press it off the hub if it’s stuck.
Once the rotor is off, clean all rotor contact surfaces thoroughly with brake cleaner to guarantee proper fit and braking performance.
Freeing the Brake Line
Begin by freeing the brake line so it won’t be stressed when you remove the front calipers and rotors.
Locate the small metal clip securing the brake line on top of the control arm and carefully pry it off with a flat screwdriver, avoiding kinks or nicks. This step prevents caliper strain once the caliper is loose.
Next, remove the two caliper bolts with a suitable socket and ratchet, then slide the caliper off the rotor.
Immediately support it with a bungee cord hooked to a solid suspension point so the brake line carries no weight.
If the rotor’s stuck, thread a bolt into the provided hole and tighten evenly to push it free.
Clean rotor and mating surfaces with brake parts cleaner.
Unbolting and Hanging Caliper
With the brake line freed, unbolt the front caliper by removing the two caliper mounting bolts using the correct socket (typically 12mm or 14mm for a 2014 Tundra). Break each bolt loose carefully, supporting the caliper with your other hand so it doesn’t drop and stress the hose. Once both bolts are out, slide the caliper straight off the rotor.
Immediately hang the caliper with a bungee cord from the upper control arm. This step is essential for proper brake line care and ongoing caliper maintenance.
| Step | Purpose |
|---|---|
| Support caliper by hand | Prevent sudden hose strain |
| Hang with bungee/strap | Remove all weight from brake line |
| Verify hose isn’t twisted | Guarantee safe, unrestricted flow |
Removing and Cleaning Rotor
After you’ve safely hung the caliper and guaranteed the brake hose isn’t strained, remove the brake line clip on top of the control arm so the caliper assembly can move freely while you work on the rotor. Confirm the hose isn’t kinked or under tension.
Next, remove the two caliper bracket bolts and lift off the bracket. Slide the rotor straight off the hub. If it’s stuck, thread the proper-size bolt into the rotor’s removal hole and tighten evenly to press the rotor off—don’t pry against the dust shield.
Perform a careful rotor inspection for scoring, heat spots, cracks, or excessive lip. Replace questionable rotors; worn surfaces can cause brake noise and poor pad bed-in.
Before reinstalling, spray both rotor faces with brake cleaner and wipe with a clean, lint‑free towel.
Installing New Front Brake Pads and Hardware
Secure the work area and then detach the front caliper so you can access the rotor and pad hardware.
Remove the brake line clip on the control arm, then loosen and remove the two caliper bolts. Hang the caliper with a bungee so the hose isn’t stressed.
Verify the rotor is clean and dry; re-spray brake cleaner if needed.
> Confirm the rotor surface is completely clean and dry, reapplying brake cleaner as needed before installing new pads
Use two small C-clamps to slowly compress both front pistons, watching the brake fluid level.
Install the new OEM pads, confirming the correct orientation and that brake pad materials seat fully in the brackets.
Fit shim pads to each pad’s back, then apply a thin film of high‑temp brake grease for noise reduction.
Reinstall and torque caliper bolts to spec.
Servicing Rear Calipers, Rotors, and Parking Brake Drum
Before you move to the rear axle on your Tundra, verify the parking brake is fully released so the integrated drum brake doesn’t lock the rotors in place.
Safely support the truck, remove the wheel, then unbolt the rear caliper. Hang it with a bungee cord to protect the hose from strain.
Slide the pads out and remove the rotor; if it sticks, confirm the parking brake isn’t slightly engaged.
Clean both rotor faces with brake cleaner to remove machining oil. Use a wire brush and brake parts cleaner on the caliper bracket, abutment areas, and hub face.
Inspect caliper pins, clean them, and apply proper caliper lubrication to the pins only, ensuring smooth sliding and consistent rear braking performance.
Installing New Rear Brake Pads and Finishing Paint Work
With the rear rotors and parking brake drum serviced, you’ll now install the new rear pads and prepare the calipers for paint.
You’ll remove the old pads, clean off any machining oil, fit the new pads, and lubricate the caliper pins while keeping the parking brake disengaged for safe rotor handling.
Then you’ll mask surrounding areas, apply paint to the calipers, and perform final visual and functional checks before reinstalling the wheels.
Rear Pad Installation Steps
Begin the rear pad installation by safely supporting the truck, then unbolting and removing the rear caliper so you can pull out the old pads, making certain the parking brake isn’t engaged to allow rotor movement if needed. Note the original brake pad materials and hardware orientation for reference. Clean the bracket, rotor face, and caliper contact points with brake cleaner to remove machining oil and dirt.
Use these focused installation tips:
| Step | Action | Safety Focus |
|---|---|---|
| Pad Prep | Verify correct pad shape and thickness | Prevents misfit and drag |
| Surface Cleaning | Degrease all contact surfaces | Guarantees consistent braking friction |
| Shim Installation | Install shims on pad backing plates | Reduces heat spots and noise |
| Lubrication | Apply high-temp brake grease sparingly | Prevents squeal, avoids contamination |
Reinstall the caliper, torque bolts to spec, then proceed to exterior caliper paint if desired.
Painting and Final Checks
A clean, secure brake assembly sets the stage for both reliable stopping and a professional finish.
After installing the rear pads, wipe away any machining oil from rotors and pad contact areas to protect brake performance. Verify the caliper bracket, slide pins, and caliper bolts are torqued to spec.
For caliper painting, mask the rotor and pads and use cardboard as a shield to control overspray. Apply two light coats of Duplicolor spray paint, allowing proper flash time between coats so the finish cures hard and doesn’t contaminate friction surfaces.
Once the calipers are dry, recheck all fasteners and hose routing.
Reinstall the wheels, torque lug nuts, then inspect the wheel wells for clean paint lines and leaks before performing a cautious road test.
Reassembly, Torque Specs, and Brake Pedal Setup
Once the new pads and hardware sit correctly in place, reassemble the calipers and related components in a controlled, methodical order, tightening all fasteners to Toyota’s specified torque values—79 ft-lbs for the front caliper bolts and 33 ft-lbs for the rear. As part of sound caliper maintenance, verify all slide pins move freely and all brackets sit flush before final torque.
Allow the truck to rest on its wheels, then recheck torque on all related fasteners. Next, sit in the cab and slowly pump the brake pedal until it firms up; this seats the pads and restores brake fluid pressure. Check the master cylinder level and adjust if needed.
| Step | Purpose | Safety Focus |
|---|---|---|
| Torque caliper | Prevent fastener loosening | Avoid caliper movement |
| Pump pedal | Seat pads, build pressure | Confirm predictable stopping |
| Verify fluid | Maintain system volume | Prevent air ingestion |
Road Test Checklist and Maintenance Tips
After you’ve reassembled the brakes on your Tundra, you’ll perform a controlled road test to verify proper operation, listen for abnormal noises, and confirm pedal feel.
You’ll then bed-in the new pads using a series of moderate, repeated stops to guarantee even material transfer and stable braking performance.
Finally, you’ll adopt an ongoing maintenance routine that includes fluid checks, hardware torque verification, and scheduled inspections to keep the system reliable and safe.
Safe Post-Install Inspection
Before you call the job finished, perform a careful post-install inspection to confirm the new brake pads on your Tundra are operating safely and correctly.
Start by confirming the brake fluid level is within the reservoir’s MIN–MAX marks; adjust only if needed. With the engine running, check pedal feel—it should be firm, linear, and return promptly, not soft or spongy.
Next, conduct a low-speed road test in a safe area. Apply the brakes gradually from 5–20 mph, confirming smooth engagement with no pulling, pulsation, or vibration through the pedal or steering wheel.
Listen closely for grinding or persistent squeaking. Over the next few months, visually inspect pad thickness and rotor surfaces regularly to verify even wear and consistent braking performance.
Bedding-In New Pads
Although your new pads are installed and inspected, they’ll only deliver full performance and longevity if you bed them in correctly during the initial road test.
Begin the bedding process on a safe, low-traffic road. Accelerate to 30–40 mph, then apply moderate, steady brake pressure down to about 5–10 mph; don’t fully lock the wheels or trigger ABS. Repeat 5–8 times, allowing light acceleration between stops so brakes don’t overheat.
Gradually increase speed and braking intensity for several additional stops, then drive a few minutes with minimal braking to cool the system.
Avoid hard emergency-style stops for the first 100–200 miles to prevent pad glazing.
During and after bedding, monitor for pulsation, grinding, or pulling, which can signal installation or rotor issues.
Ongoing Brake Maintenance
Once the new pads are bedded in, you need a structured road test and maintenance routine to confirm the brakes are safe and to keep them performing correctly.
On a quiet road, perform several controlled stops from varying speeds. Listen for grinding or squealing, feel for vibrations in the pedal or steering wheel, and verify the truck doesn’t pull to one side. Any of these indicate installation or component issues.
As part of ongoing brake maintenance, inspect pad thickness regularly and replace before they reach 3 mm.
Perform fluid checks monthly; confirm level is within the reservoir marks and fluid is clear, then replace it every two years.
Periodically inspect calipers, hoses, and lines for leaks, corrosion, or damaged fittings.
Frequently Asked Questions
Can I Upgrade to Larger Rotors or Big Brake Kits on a 2014 Tundra?
You can upgrade to larger rotors or big brake kits, but you must verify wheel clearance, bracket compatibility, and brake bias. Follow torque specs, use quality rotor upgrades, bleed the system correctly, and test pedal feel cautiously afterward.
How Do Towing and Heavy Loads Affect Brake Pad Choice and Lifespan?
Towing and heavy loads increase heat, so you’ll choose high‑friction brake pad materials (semi‑metallic or heavy‑duty ceramic) and expect shorter lifespan. You’ll monitor thickness more often, avoid overheating, and follow conservative stopping distances to manage towing impact safely.
What Symptoms Indicate Warped Rotors Versus Normal Brake Pad Wear?
You’ll suspect warped rotors when you feel pulsing brake pedal feedback and steering shake from rotor vibration sensitivity under light‑to‑moderate braking. Normal pad wear causes gradual stopping distance increase, thinner pads, and consistent, non‑pulsing pedal travel.
Are Ceramic or Semi-Metallic Pads Better for Off-Road and Towing Use?
You’ll usually pick semi‑metallic for off‑road and towing; they handle heat and loads better. Note ceramic advantages—low dust, quiet—but recognize semi metallic drawbacks like noise and rotor wear, then confirm pad temperature ratings and torque specs before installation.
How Often Should I Flush or Bleed Brake Fluid on a 2014 Tundra?
You should flush or bleed brake fluid every 2–3 years or 30,000 miles for proper brake fluid maintenance. Use DOT 3 or DOT 4, keep moisture out, and always torque fittings correctly to protect brake system longevity.
Conclusion
You’ve just handled a full front and rear brake service on your 2014 Tundra, from lifting and teardown to pad replacement, painting, torqueing, and pedal setup. Always verify torque specs, check for leaks, and confirm free wheel rotation before road testing. On your test drive, bed in the pads per manufacturer guidance and monitor for noise, pull, or vibration. Keep an eye on pad thickness and fluid condition, and you’ll maintain safe, consistent braking performance.
