“The diesel is the way to go.” — 2026 GMC Sierra 1500 AT4 Real-World Evaluation
If you want a full-size pickup that balances rugged off-road capability, long-haul fuel range, and modern luxury without forcing you into heavy-duty truck territory, the 2026 GMC Sierra 1500 AT4 equipped with the 3.0-liter Duramax inline-6 turbo-diesel (engine code LZ0) is one of the most compelling options on the market. In a light-duty segment where both Ford and Ram have discontinued their half-ton diesel options, General Motors stands alone. The Sierra AT4 pairs 495 lb-ft of low-end torque and 26-mpg highway efficiency with a factory two-inch suspension lift, purposeful trail hardware, and premium digital cabin tech.
Quick Answer
The 2026 GMC Sierra 1500 AT4 Duramax features a 3.0L LZ0 turbo-diesel engine producing 305 hp and 495 lb-ft of torque, returning an EPA-estimated 22 mpg city and 26 mpg highway. Equipped with a 2-inch factory lift, Rancho monotube shocks, and Eaton G80 locking differential, it tows up to 8,700 lbs with a 1,411-lb payload as tested ($73,855 MSRP).
Key Takeaways
- Sole Half-Ton Diesel: With Ram dropping the EcoDiesel in 2023 and Ford sunsetting the 3.0L Power Stroke in 2021, GM is the only manufacturer offering an inline-6 turbo-diesel in the half-ton truck class for 2026.
- Effortless Torque & Range: Generating 495 lb-ft of peak torque at just 2,750 rpm, the LZ0 Duramax returns an EPA-estimated 26 mpg on the highway, enabling an exceptional 600+ mile theoretical cruising range on its 24-gallon tank.
- The Towing Package Trade-Off: While standard Sierra 1500 Duramax models tow up to 13,300 lbs when equipped with the Max Trailering Package, the AT4 trim is capped at 8,700 lbs due to its factory lift, softer off-road suspension tuning, and tire ratings.
- Trail-Ready Hardware: The AT4 comes standard with a 2-inch factory suspension lift, Rancho monotube shocks, underbody skid plates, an Eaton G80 automatic locking rear differential, and an Autotrac 2-speed transfer case.
- Accessible High-End Tech: Premium driver conveniences like a 13.4-inch touchscreen with Google built-in, a digital camera rearview mirror, and an optional 15-inch Head-Up Display are packaged at an MSRP often lower than comparably equipped luxury competitors.
Exterior Styling and Off-Road Dimensions

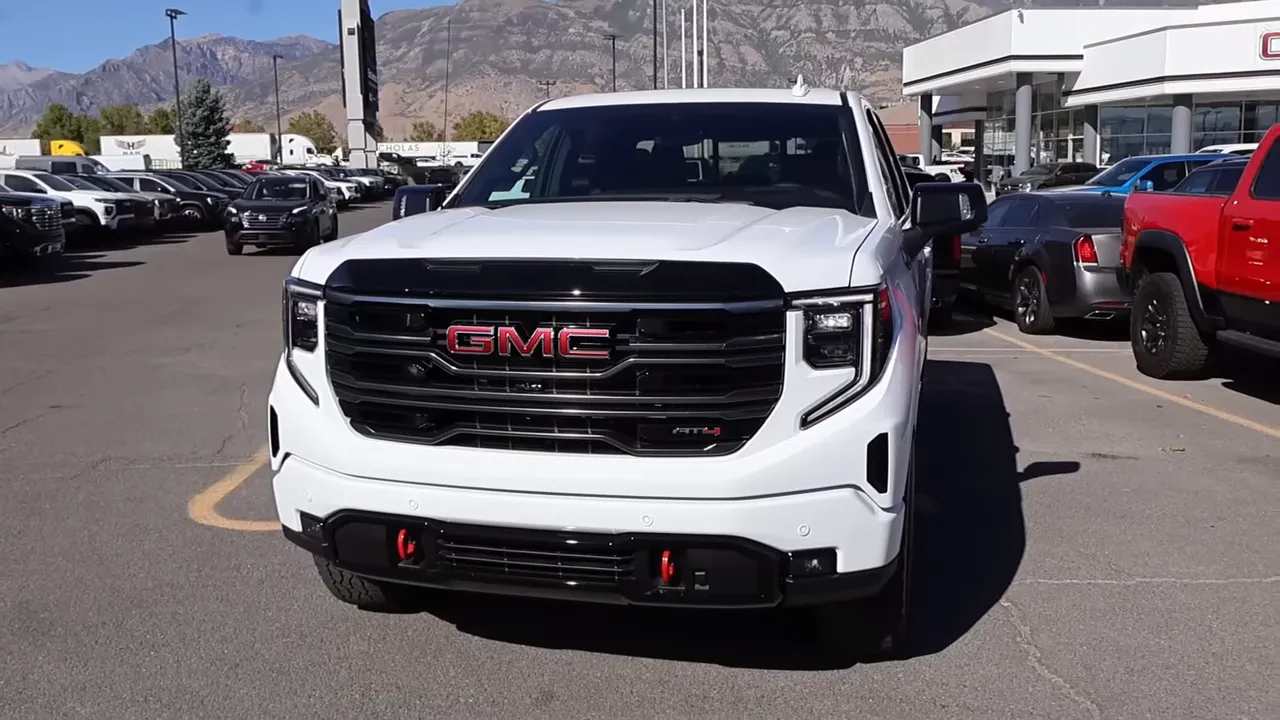

The 2026 Sierra AT4 shown here is finished in Summit White (often affectionately called “work truck white”). The stark color creates a crisp contrast against the AT4-exclusive exterior accents: blacked-out headlight bezels, a dark chrome grille surround with darkened center bars, gloss-black mirror caps, and signature red recovery hooks mounted prominently in the lower front bumper.

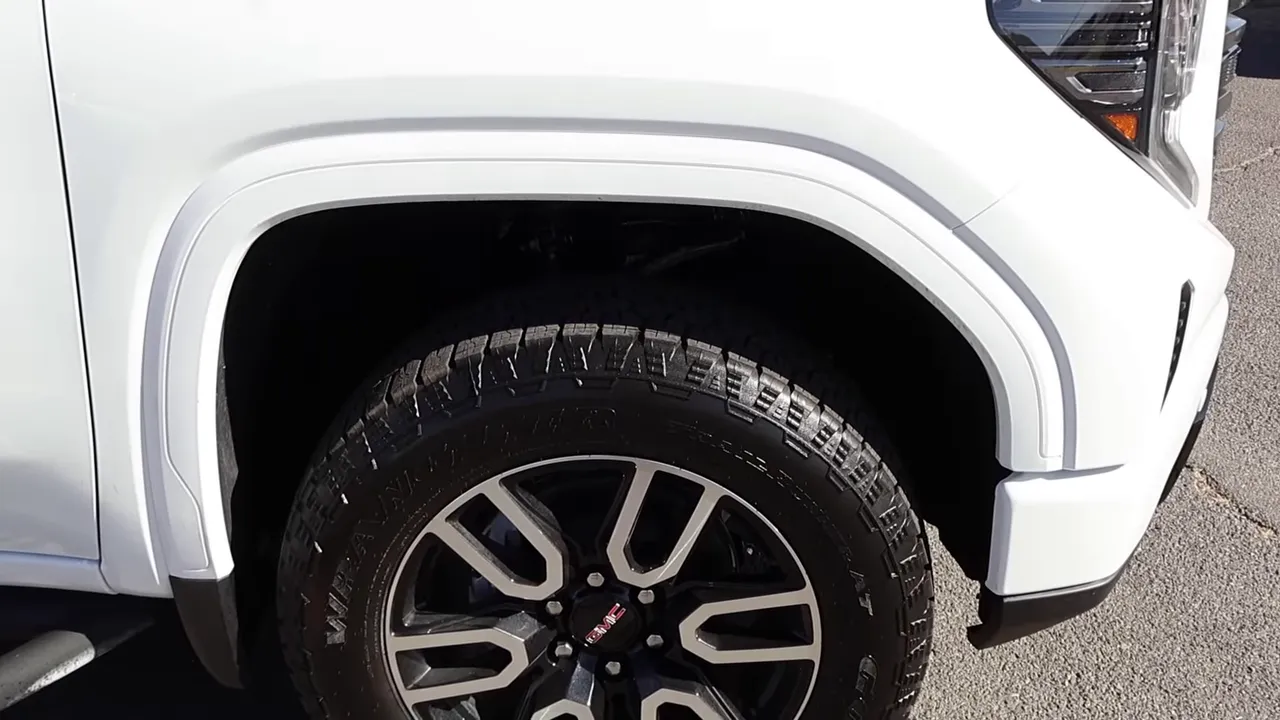

Functionally, the AT4 sits two inches taller than a standard Sierra 1500, yielding approximately 11.1 inches of running ground clearance and an improved approach angle. Body-color fender flares give the truck a tailored, cohesive profile that distinguishes it from work-oriented base trims. This example rolls on 275/60R20 Goodyear all-terrain tires wrapped around 20-inch six-spoke machined aluminum wheels featuring dark gray pockets—balancing off-road sidewall compliance with composed highway tracking.

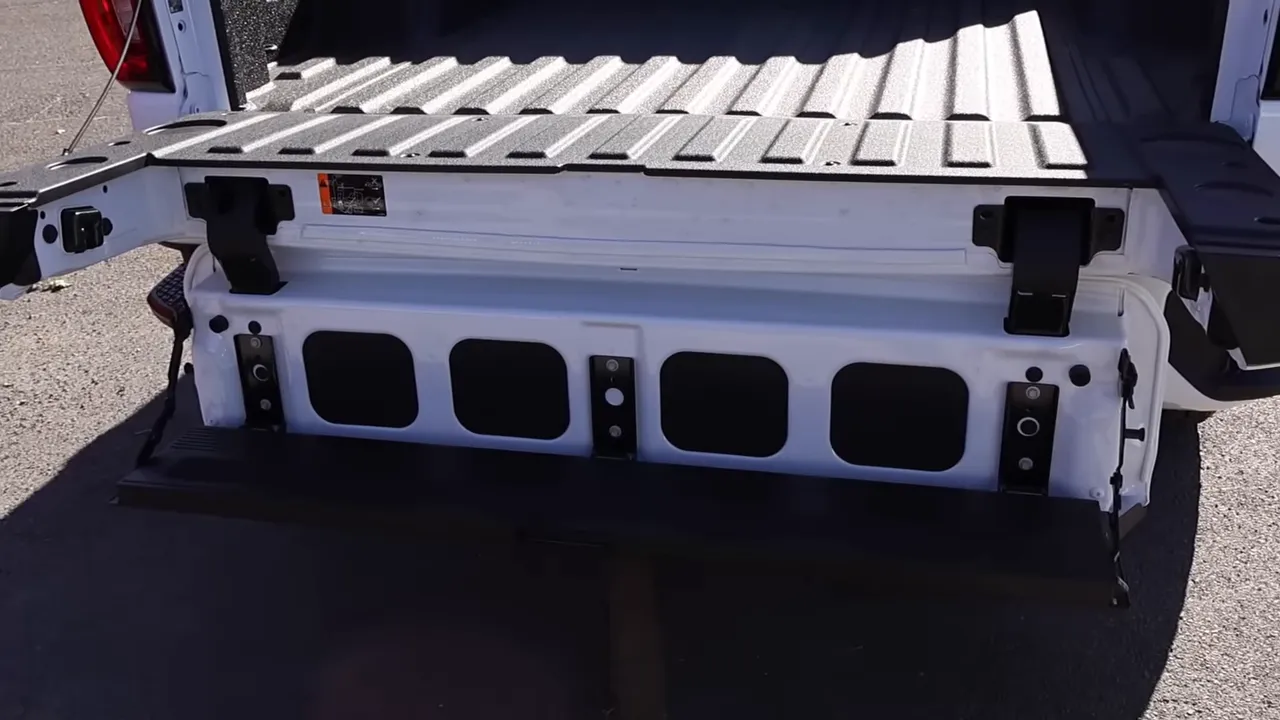

At the rear, GMC integrates practical job-site utility into the truck bed. The high-strength roll-formed steel cargo box features heavy-duty factory spray-in bed protection, LED perimeter lighting, and a 120-volt AC power outlet capable of running portable power tool chargers or camping gear. GMC’s patented six-function MultiPro Tailgate folds downward to create a wide step with an integrated grab handle, making bed entry effortless even with the factory lift. CornerStep rear bumpers and flush rear parking sensors complete the rear packaging alongside discreet dual exhaust outlets tucked neatly under the bumper.
Interior Craftsmanship and Cabin Ergonomics
Inside, the AT4 adopts an adventurous yet upscale aesthetic. The cabin is upholstered in Jet Black perforated leather accented with Kalahari (warm tan) stitching and piping along the seat edges, door cards, and lower center dashboard. Brushed aluminum trim and technical graining give the surfaces a durable feel. Front bucket seats provide 10-way power adjustment with power lumbar support, standard three-stage heating, and active ventilation.

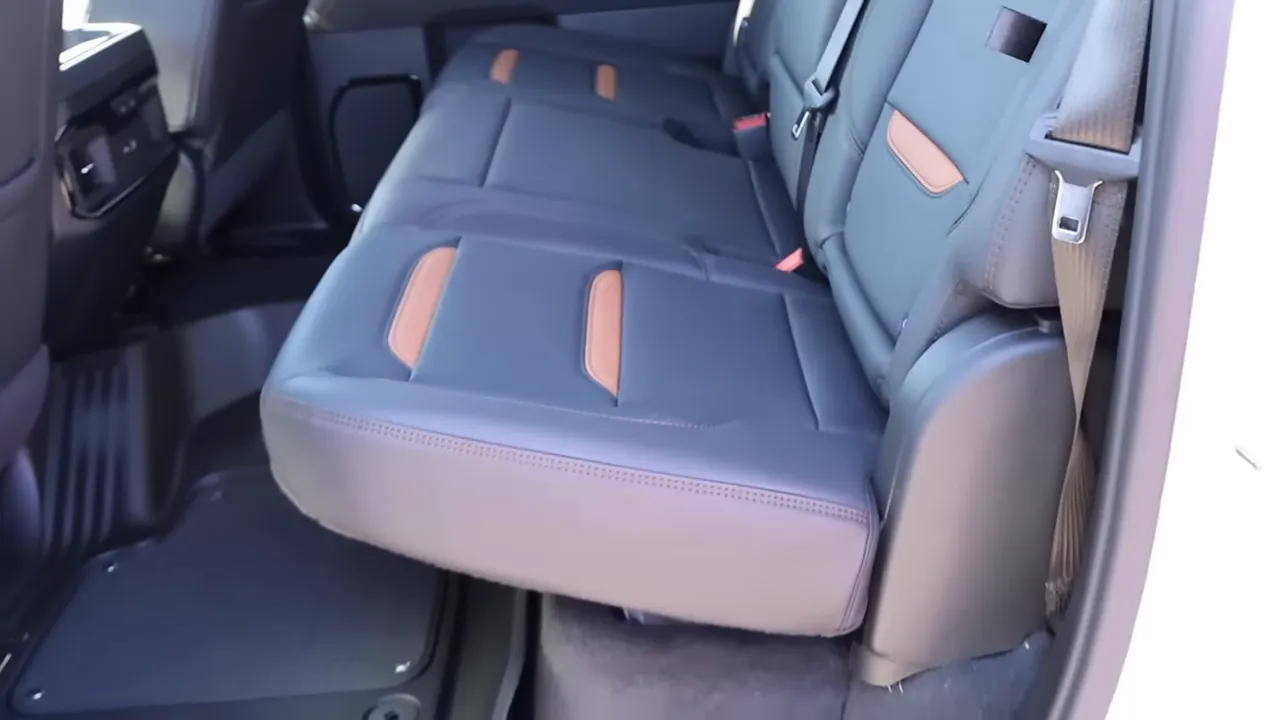

Rear seat passengers benefit from class-leading legroom (43.4 inches) and generous headroom. Outboard rear seats are heated, and GMC includes smart cargo compartments integrated directly into the rear seatbacks for stashing tie-downs, gloves, or small electronics, plus a full-width under-seat storage tray that folds up to reveal a flat load floor.
Note on Seating Comfort: While the leather materials and Kalahari accents are visually striking, the seat cushions lean firm rather than pillow-soft. Drivers accustomed to the plush, sofa-like contouring of high-trim Ram 1500 trucks will notice a more upright, supportive posture in the Sierra that excels on rough trails but feels firmer during long stretches of flat interstate driving.
Infotainment, Trailering Tech, and Cabin Controls
The Sierra AT4 features a dual-screen digital cockpit. Front and center is a 13.4-inch horizontal touchscreen running GMC Premium Infotainment with Google built-in (native Google Maps navigation, Google Assistant, and Google Play app store). The interface supports wireless Apple CarPlay and wireless Android Auto with rapid response times and split-screen capability.

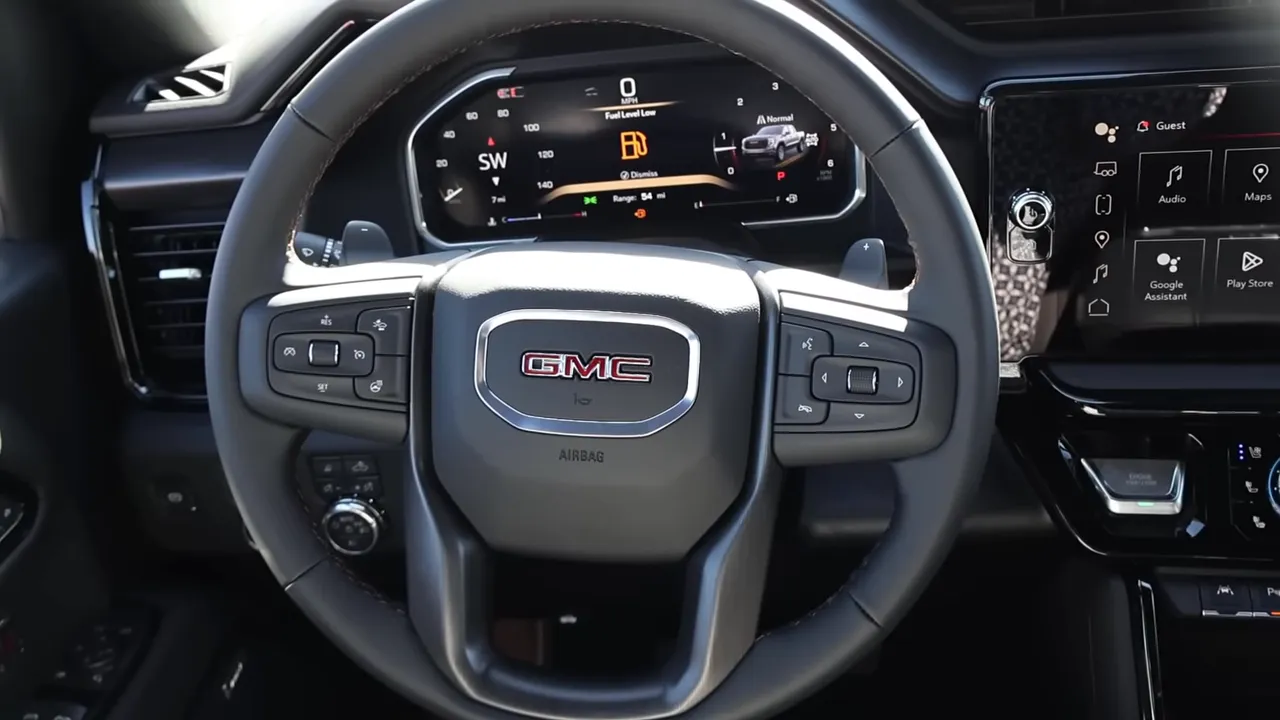

Behind the leather-wrapped steering wheel sits a 12.3-inch configurable digital driver information center, supplemented by an available 15-inch multicolor Head-Up Display that projects speed, safety alerts, and turn-by-turn guidance onto the windshield. GMC wisely retains a row of tactile physical toggle switches for dual-zone automatic climate control, heated/cooled seat buttons, lane keep assist, hill descent control, and parking sensors.

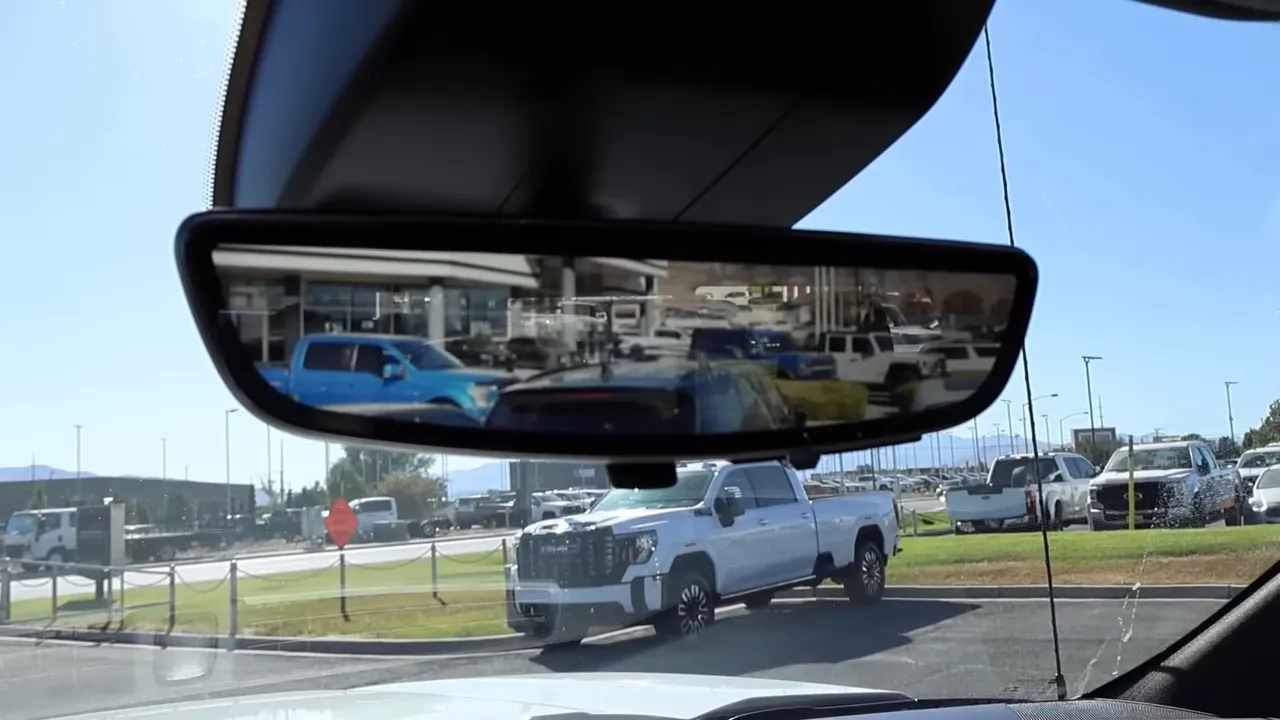

Visibility is enhanced through GMC’s UltraVision camera system. This setup provides up to 14 distinct camera angles, including a high-definition 360-degree surround-view camera, a dedicated cargo bed camera, and transparent trailer view compatibility. The digital camera rearview mirror provides a wide-angle video feed behind the truck that completely eliminates blind spots caused by tall cargo, rear passengers, or headrests.
3.0L Duramax Turbo-Diesel: LZ0 Architecture and Fuel Range

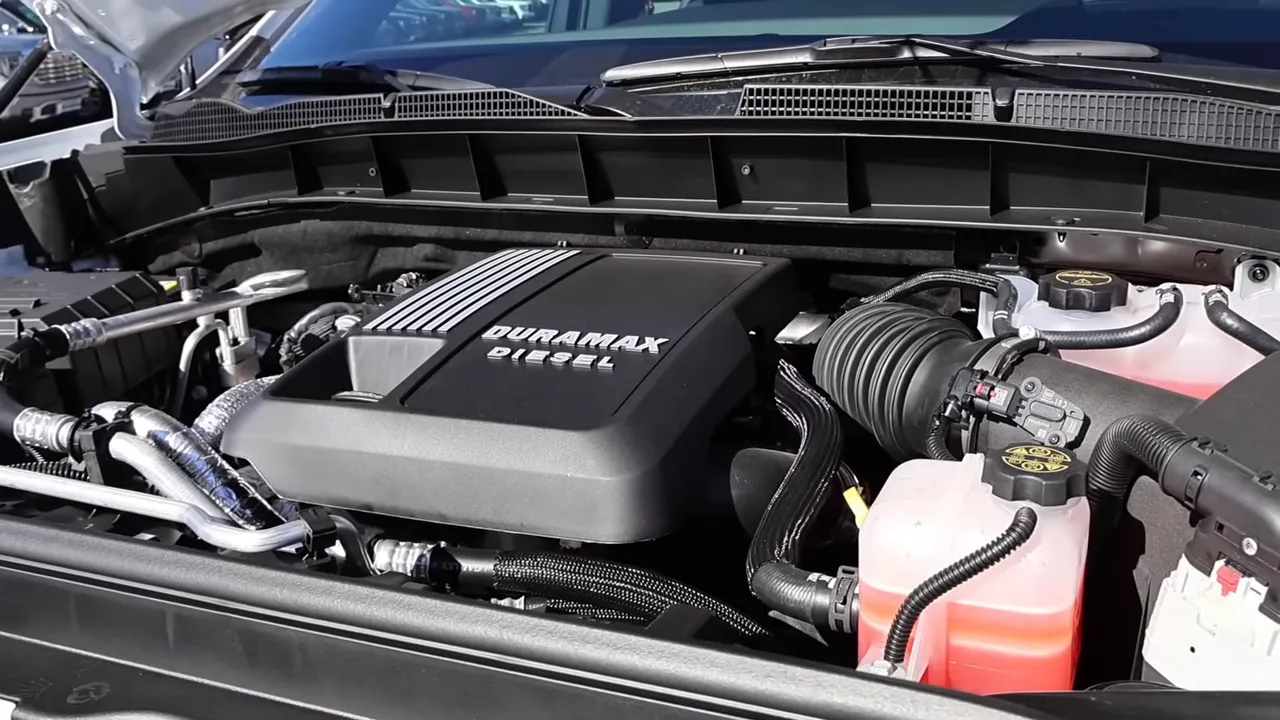

Beneath the sculpted hood lies the second-generation 3.0-liter inline-six turbo-diesel engine, known by GM designation **LZ0**. The powerplant produces a factory-certified 305 horsepower at 3,750 rpm and a robust 495 lb-ft of torque available from a low 2,750 rpm. It routes output through GM’s Hydra-Matic 10-speed automatic transmission equipped with Electronic Precision Shift and paddle shifters.
Introduced to replace the first-generation LM2, the LZ0 engine incorporates forged steel pistons with a revised combustion bowl geometry, a retuned variable-geometry turbocharger compressor, updated high-pressure fuel injectors, and improved thermal cooling circuits. Backed by GM’s 5-year/100,000-mile powertrain warranty (compared to 60,000 miles on gasoline models), the LZ0 delivers both longevity and efficiency.
According to EPA fuel economy estimates, the four-wheel-drive Sierra 1500 Duramax earns **22 mpg city, 26 mpg highway, and 24 mpg combined**. Paired with a 24-gallon fuel tank, this truck boasts a real-world cruising range exceeding **600 miles** per fill-up—making it a formidable overland expedition and cross-country tow vehicle.
Pro Tip for Diesel Longevity: Modern diesels rely on a Diesel Particulate Filter (DPF) that automatically incinerates soot via high-temperature exhaust cycles (“regeneration”). If your daily driving consists primarily of short, 5-to-10-minute low-speed city trips, take the Sierra out on the highway for a sustained 20-to-30-minute cruise once every couple of weeks to allow the DPF to complete a full clean burn and prevent exhaust warning indicators.
On-Road Driving Impressions and Trail Suspension

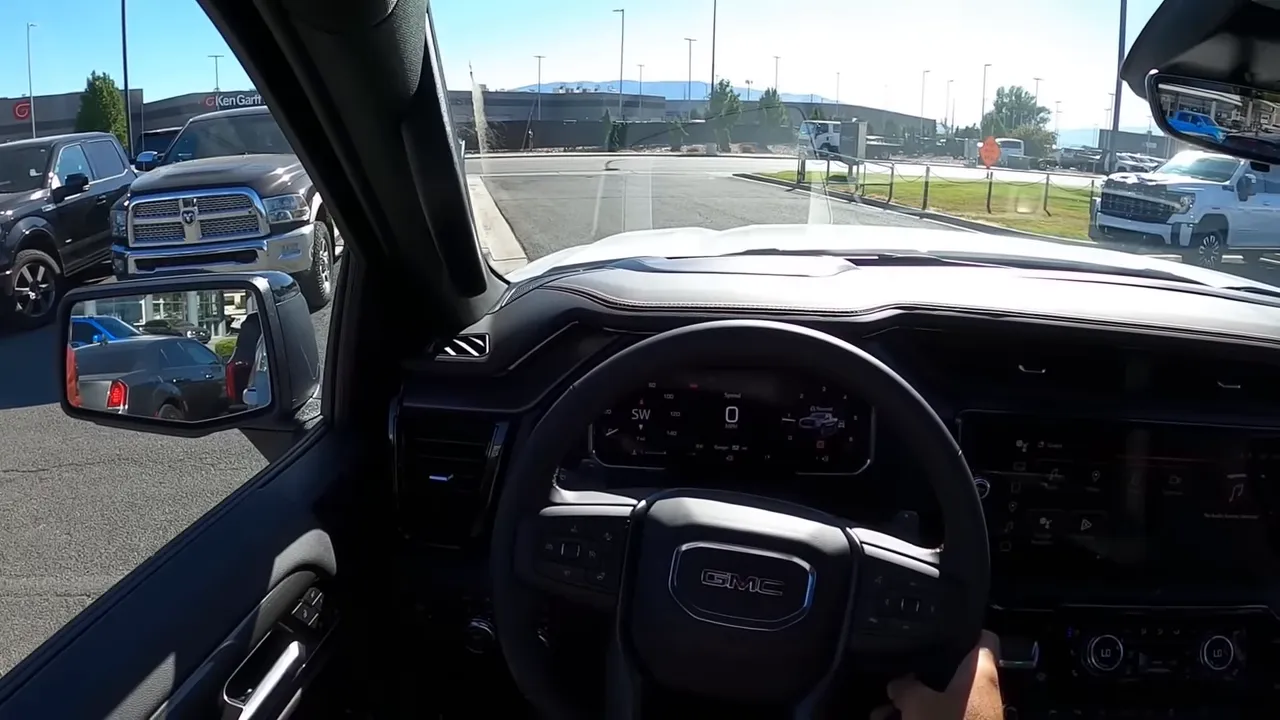

On the road, the Duramax inline-six operates with exceptional mechanical balance. Unlike uneven V6 diesels, an inline-six has inherent primary and secondary mechanical balance, virtually eliminating idle vibration. Cabin insulation is thoroughly engineered: while a faint diesel whistle and muffled purr are audible under heavy throttle, the cabin remains quiet and settled at 75 mph. GMC does not equip the AT4 with laminated acoustic side glass, yet wind and road isolation remain commendable.
The AT4’s suspension relies on an independent coil-over-shock front configuration and heavy-duty semi-elliptic leaf springs at the rear, paired with off-road-tuned Rancho monotube shock absorbers. The two-inch factory suspension lift provides ample wheel travel for washboard gravel roads, fire trails, and moderate rock obstacles. While it lacks the ultra-plush high-speed bump absorption found on the flagship Sierra AT4X with race-derived Multimatic DSSV spool-valve dampers, the standard AT4 suspension is composed, controlled, and comfortable for daily commuting.
Steering weight is linear and predictable, braking response is firm with minimal nose-dive, and the 10-speed transmission shifts smoothly, utilizing the diesel’s broad torque band to hold higher gears up steep highway grades without unnecessary downshifting.
The Towing Compromise: AT4 Off-Road Setup vs. Max Trailering Package
The single most significant point of confusion for prospective Sierra buyers is the disparity in tow ratings across trims. Advertisements highlight that a 2026 Sierra 1500 with the 3.0L Duramax diesel can tow up to **13,300 pounds**. However, this test vehicle’s door sticker confirms an official towing limit of **8,700 pounds** and a payload capacity of **1,411 pounds**.
Why the 4,600-lb towing deficit on the AT4? The answer lies in GM’s suspension geometry and package availability. Achieving the Sierra’s maximum 13,300-lb tow rating requires ordering the **Max Trailering Package (RPO NHT)** on a non-lifted trim (such as an SLE, Elevation, or SLT). The NHT package includes:
- Stiffer, heavy-duty rear leaf springs with higher load deflection ratings
- A heavy-duty 9.76-inch rear axle with a 3.73 (gas) or 3.42 (diesel) axle ratio
- Upgraded cooling capacity and stiffer passenger-rated/commercial highway tires
- A standard, unlifted ride height to optimize trailer hitch tongue geometry
Because the AT4 comes standard with a 2-inch suspension lift, softer-valved Rancho off-road shocks, more compliant rear springs for trail articulation, and aggressive all-terrain tires, GM **does not offer the Max Trailering Package on the AT4**. The higher center of gravity and softer off-road compliance necessitate a lower Gross Combination Weight Rating (GCWR).
Warning on Payload Math: When towing, tongue weight typically consumes 10% to 15% of the trailer’s total weight. Pulling a 7,500-lb camper generates roughly 850 to 1,000 lbs of tongue weight. Subtracting that from the AT4’s 1,411-lb door jamb payload rating leaves only 411 to 561 lbs for passengers, aftermarket accessories, and bed cargo before exceeding the truck’s Gross Vehicle Weight Rating (GVWR). Always verify your tire and loading placard before hitching.
Market Comparison: GMC Sierra AT4 vs. Ford and Ram Rivals
The light-duty full-size truck landscape has shifted dramatically. With Ram terminating the 3.0L EcoDiesel V6 after 2023 and Ford discontinuing the 3.0L Power Stroke diesel in 2021, the Sierra AT4 (and its mechanical twin, the Chevrolet Silverado LTZ/Trail Boss) is the only half-ton pickup offering diesel power. To understand its competitive standing, we must compare it to its closest electrified and turbocharged gas competitors:
| Metric | 2026 GMC Sierra 1500 AT4 | 2026 Ford F-150 Tremor (PowerBoost) | 2026 Ram 1500 Rebel (Hurricane) |
|---|---|---|---|
| Engine Type | 3.0L Inline-6 Turbo-Diesel (LZ0) | 3.5L V6 Full Hybrid (Gas/Electric) | 3.0L Inline-6 Twin-Turbo Gas (S.O.) |
| Horsepower / Torque | 305 hp / 495 lb-ft | 430 hp / 570 lb-ft | 420 hp / 469 lb-ft |
| EPA Fuel Economy (4WD) | 22 city / 26 hwy / 24 comb | 23 city / 24 hwy / 23 comb | 17 city / 24 hwy / 19 comb |
| Off-Road Package Max Tow | 8,700–9,000 lbs | Up to 10,900 lbs | Up to 8,300 lbs |
| Rear Locking Differential | Standard Eaton G80 Automatic | Standard Electronic Locker | Standard Electronic Locker |
| Comparable MSRP as Tested | $73,855 | ~$76,500 – $79,000 | ~$78,000 – $83,000 |
Three areas where GMC delivers superior value:
- Accessible High-Value Tech: Features like the camera rearview mirror, 15-inch HUD, and bed cameras are bundled in packages that keep the total window sticker around $73,000—whereas fully optioned Ram Rebel and Ford Tremor packages frequently cross $80,000.
- Unmatched Highway Cruising Efficiency: While Ford’s PowerBoost hybrid shines in low-speed city stop-and-go driving, the Duramax dominates open highway routes, holding steady at 26+ mpg while towing moderate loads.
- Proven Durability: The inline-6 layout avoids the complexity of dual turbo plumbing found in Ram’s twin-turbo Hurricane gas engine while delivering linear, low-rpm torque.
Buyer Persona: Who Should Choose the Sierra AT4 Duramax?
The 2026 Sierra 1500 AT4 Duramax is ideally suited for buyers who:
- Travel extensive highway miles or undertake long-distance overland expeditions where 26 mpg and a 600-mile cruising range save substantial fuel expense.
- Tow light-to-moderate recreational loads (such as a 20-to-26 foot travel trailer, bass boat, horse trailer, or side-by-side trailer weighing under 7,500 lbs loaded).
- Want real trail capability—including 11 inches of ground clearance, 2-speed four-wheel drive with low range, and automatic rear locking traction—for snow, mud, and uneven terrain.
- Appreciate high-definition camera tech, Google built-in connectivity, and premium cabin appointments for daily business commuting.
Conversely, this truck is not suited for commercial operators who need to haul heavy fifth-wheels or 10,000+ lb equipment trailers. For those duties, buyers should choose a Sierra 1500 with the Max Trailering Package (NHT) or step up to a Sierra 2500HD with the 6.6L Duramax V8.
Key Specs at a Glance
- Engine: 3.0-liter turbocharged inline-6 Duramax diesel (LZ0)
- Transmission: 10-speed automatic with Electronic Precision Shift
- Horsepower: 305 hp @ 3,750 rpm
- Torque: 495 lb-ft @ 2,750 rpm
- EPA Fuel Economy (4WD): 22 mpg city / 26 mpg highway / 24 mpg combined
- Fuel Tank Capacity: 24.0 gallons (estimated 624-mile highway range)
- Transfer Case: Autotrac 2-speed active transfer case (2WD, Auto, 4WD High, 4WD Low)
- Rear Axle: 3.23 ratio with Eaton G80 automatic locking rear differential
- Suspension: 2-inch factory lift with Rancho monotube off-road shock absorbers
- Tires & Wheels: 275/60R20 all-terrain tires on 20-inch machined aluminum wheels
- Configured Towing Capacity: 8,700 lbs (Crew Cab Short Bed as tested)
- Door-Jamb Payload Capacity: 1,411 lbs (as tested)
- MSRP (Base AT4): ~$67,000; As Tested: $73,855
Final Take — Is the AT4 Duramax Worth It?
Yes—provided you understand its operational sweet spot. The 2026 GMC Sierra 1500 AT4 with the 3.0L Duramax LZ0 diesel is one of the most balanced, practical, and enjoyable full-size pickup trucks currently on sale. In a marketplace that has largely abandoned light-duty diesels in favor of high-strung turbocharged gas engines, General Motors has refined the inline-6 Duramax into a smooth, quiet torque monster that delivers unrivaled real-world cruising range.
The primary caveat remains the towing limitation. If your lifestyle demands towing near the half-ton class maximum of 13,000 lbs, you cannot purchase the AT4; you must select an SLT or Elevation with the Max Trailering Package. But for owners pulling everyday recreational boats, campers, and utility trailers under 8,000 lbs, the AT4 offers an irresistible blend of trail confidence, accessible tech, and segment-best fuel economy.
Frequently Asked Questions
What are the real-world fuel economy numbers for the 2026 GMC Sierra 1500 AT4 diesel?
The EPA rates the 4WD Sierra 1500 AT4 with the 3.0L Duramax at 22 mpg in the city, 26 mpg on the highway, and 24 mpg combined. In real-world unloaded highway driving at 65–70 mph, drivers frequently report 26 to 28 mpg. When towing an enclosed 6,000-lb trailer, highway fuel economy typically settles between 12 and 15 mpg, significantly outperforming gasoline V8 engines under identical loads.
How much torque and horsepower does the 3.0L Duramax LZ0 inline-six make?
The 3.0-liter turbocharged inline-six Duramax diesel (engine code LZ0) generates 305 horsepower at 3,750 rpm and 495 lb-ft of torque at 2,750 rpm. It is mated to a Hydra-Matic 10-speed automatic transmission.
Can you get the Sierra AT4 and the Max Trailering Package together?
No. GMC does not offer the Max Trailering Package (RPO NHT) on AT4 or AT4X models. The AT4’s standard two-inch suspension lift, softer-valved Rancho shocks, and all-terrain tires are incompatible with the stiffer rear springs and suspension geometry required for GM’s maximum 13,300-lb rating. As a result, the AT4 is factory-rated to tow between 8,700 and 9,000 lbs depending on specific options.
What unique technology does the Sierra AT4 offer compared to Ford and Ram?
The Sierra AT4 includes GMC’s UltraVision system featuring up to 14 camera views (including transparent trailer and bed camera feeds), a digital camera rearview mirror, a 15-inch Head-Up Display, and a 13.4-inch touchscreen with Google built-in. GMC bundles these features into option packages that keep the vehicle’s MSRP around $73,800, whereas similarly optioned Ford Tremor or Ram Rebel models often exceed $80,000.
How comfortable is the AT4 suspension compared to the Sierra AT4X and Ram 1500?
The AT4’s Rancho monotube shocks and rear leaf springs provide a firm, controlled ride that easily absorbs potholes and gravel washboards. However, it is not as supple as the flagship Sierra AT4X, which utilizes spool-valve Multimatic DSSV dampers, nor is it as plush as coil-sprung or air-suspension Ram 1500 models on smooth highway pavement.
What practical bed and cargo features come on the 2026 AT4?
The AT4 bed includes a factory spray-in bedliner, high-intensity LED cargo perimeter lighting, an integrated 120-volt AC power outlet, 12 standard tie-downs rated at 500 lbs each, and the six-position GMC MultiPro Tailgate with an integrated full-width step and assist handle.
